󠀢AnimeX

AnimeX ⛩️🌸 Simple app that demonstrates various Android development best practices

⛩️ Tech stack

• Kotlin
  based, Coroutines
  • Flow
    for asynchronous tasks.
• Jetpack
  • Android Architecture Components
    • Lifecycle: Observe Android lifecycles and handle UI states based on the lifecycle changes.
    • ViewModel: Manages UI-related data.
    • DataBinding: support library that allows you to bind UI components in your layouts to data
      sources in your app using a declarative format rather than programmatically.
    • Room: used to construct reliable caching for offline support.
    • Paging 3
      helps you load and display pages of data from a larger dataset from local storage or over
      the
      network.
    • Hilt: for DI (dependency injection) .
• Retrofit2 & OkHttp3: REST APIs.
• Moshi: A modern JSON library for Kotlin and Java.
• Coil: Loading images from network.
• Timber: A logger with a small API footprint.
• Material Components for Android
  .
• Architecture
  • The app following MVVM Clean Architecture (View - ViewModel - Model) - Domain layer - Data
    layer with Repository Pattern

• This Repository contains 3 branches

  • First which represents master that contain
    ready base code for development.

  • Second which represents round one of
    the development phase so
    in this round the data bumped directly from the Remote Source to the UI over
    the Paging 3

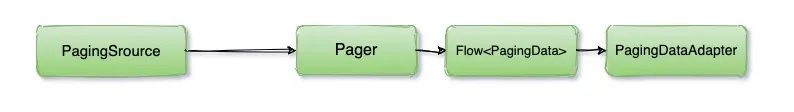

    PagingSource without any caching , The next image demonstrates the flow of the process.



  • Third which represents round two of
    the development phase so
    in this round the data bumped directly from the database to the UI over
    the Paging 3
    PagingSource Assisted
    with Remote Mediator
    which control the process of loading new pages from the Remote Source
    and cache it on the database, so based on this flow the database become the source of truth of
    the data in the app ,the remote mediator calculate the pages based on stored AnimeXPagingKeys
    that contain:

    • nextKey -> next page number
    • prevKey -> previous page number
    • currentPage -> current page number


      The next image demonstrates the flow of the process
